1967 Chevy Camaro Resto mod – Resto mod Project

Owner: Jay Gudebski

1967 Camaro Resto mod | Orinda Classic Car Center

1967 Camaro Restomod | Orinda Classic Car Center image 2

1967 Camaro Restomod | Orinda Classic Car Center image 3

1967 Camaro Restomod | Orinda Classic Car Center image 4

1967 Camaro Restomod | Orinda Classic Car Center image 5

1967 Camaro Restomod | Orinda Classic Car Center image 6

1967 Camaro Restomod | Orinda Classic Car Center image 7

1967 Camaro Restomod | Orinda Classic Car Center image 8

1967 Camaro Restomod | Orinda Classic Car Center image 9

1967 Camaro Restomod | Orinda Classic Car Center image 10

1967 Camaro Restomod | Orinda Classic Car Center image 11

1967 Camaro Restomod | Orinda Classic Car Center image 12

Work Performed:

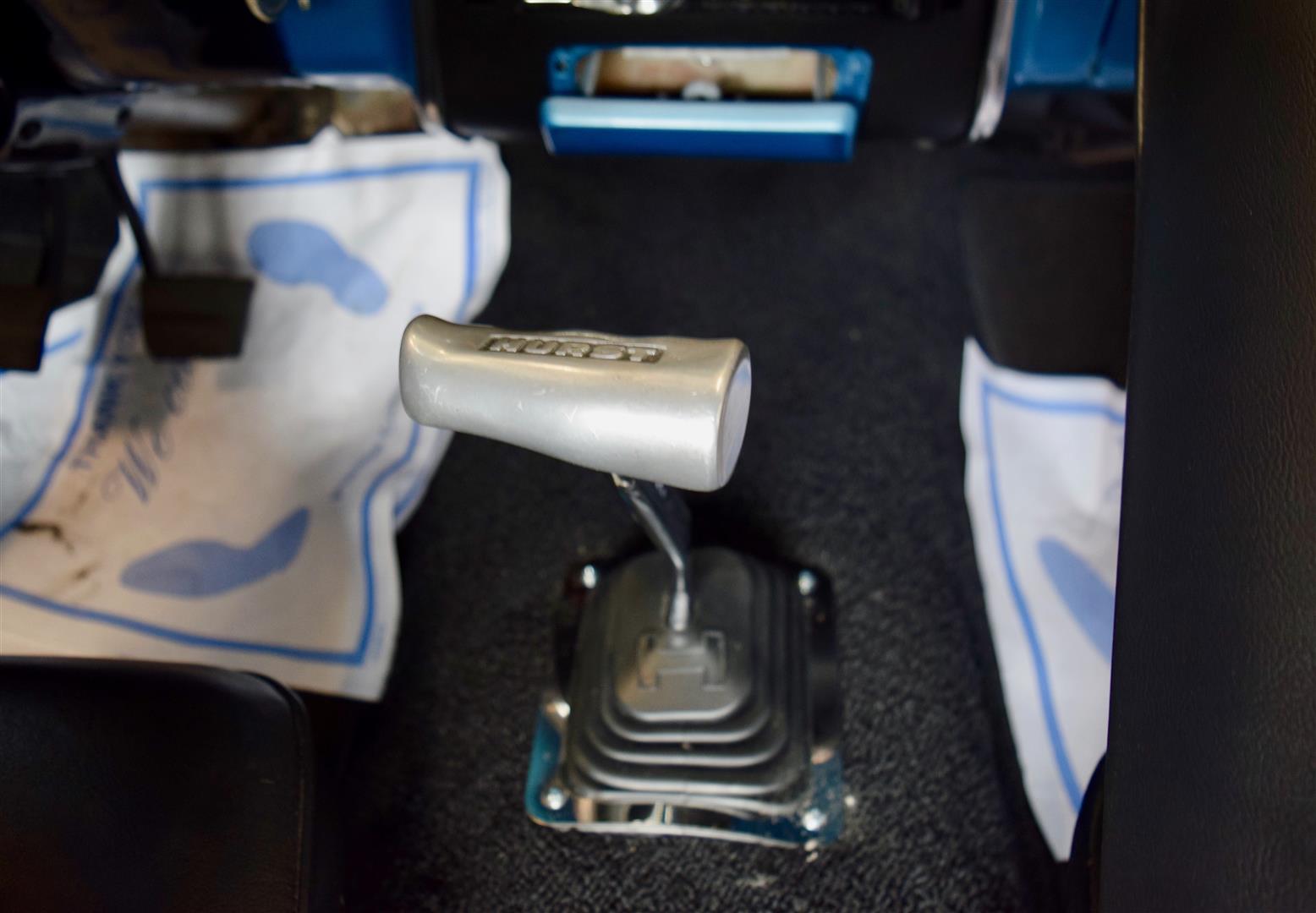

Converted vehicle to a 5 speed manual transmission and installed a proper speedometer cable along with a new shift boot

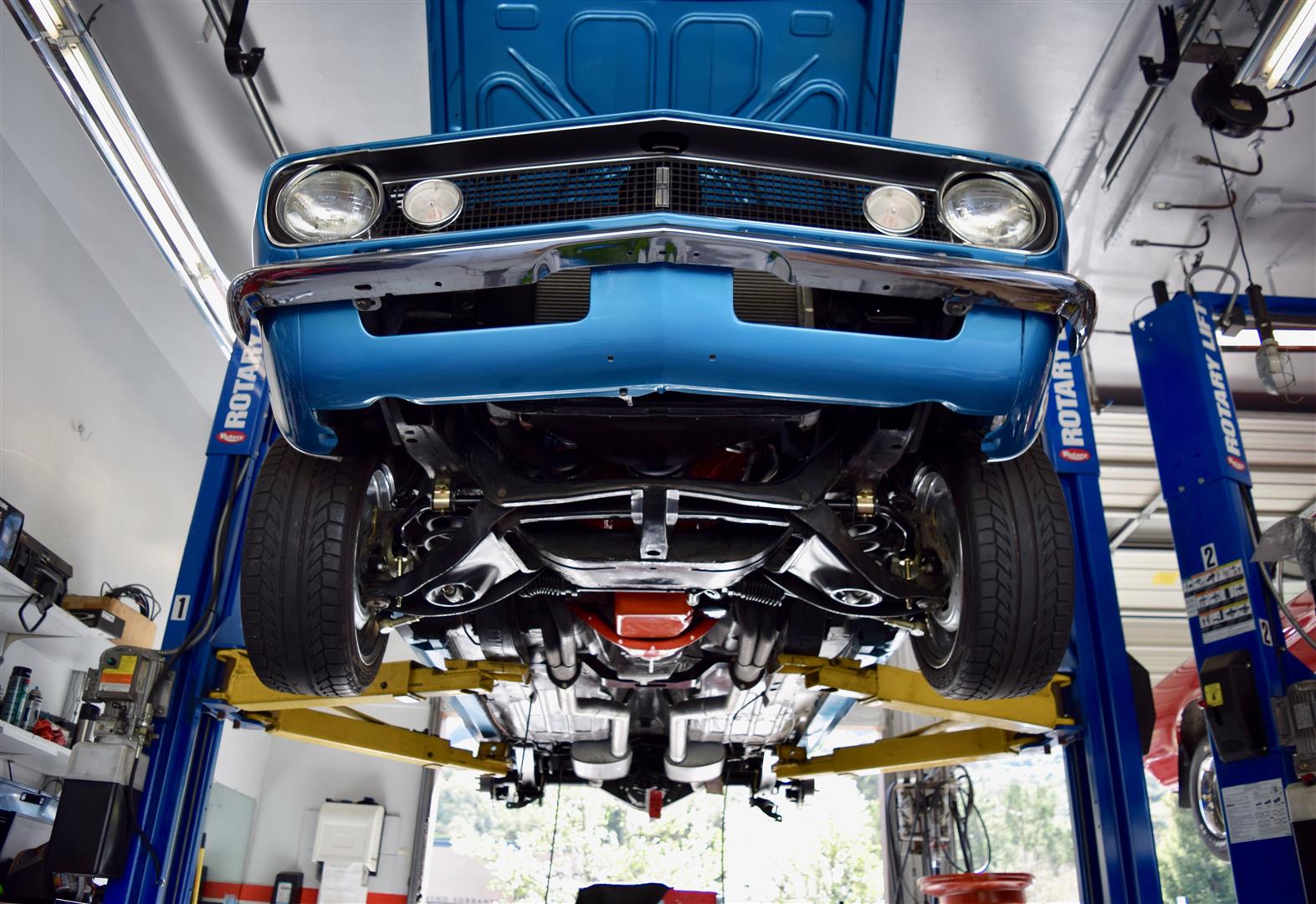

Converted vehicle to a rack and pinion system with power steering

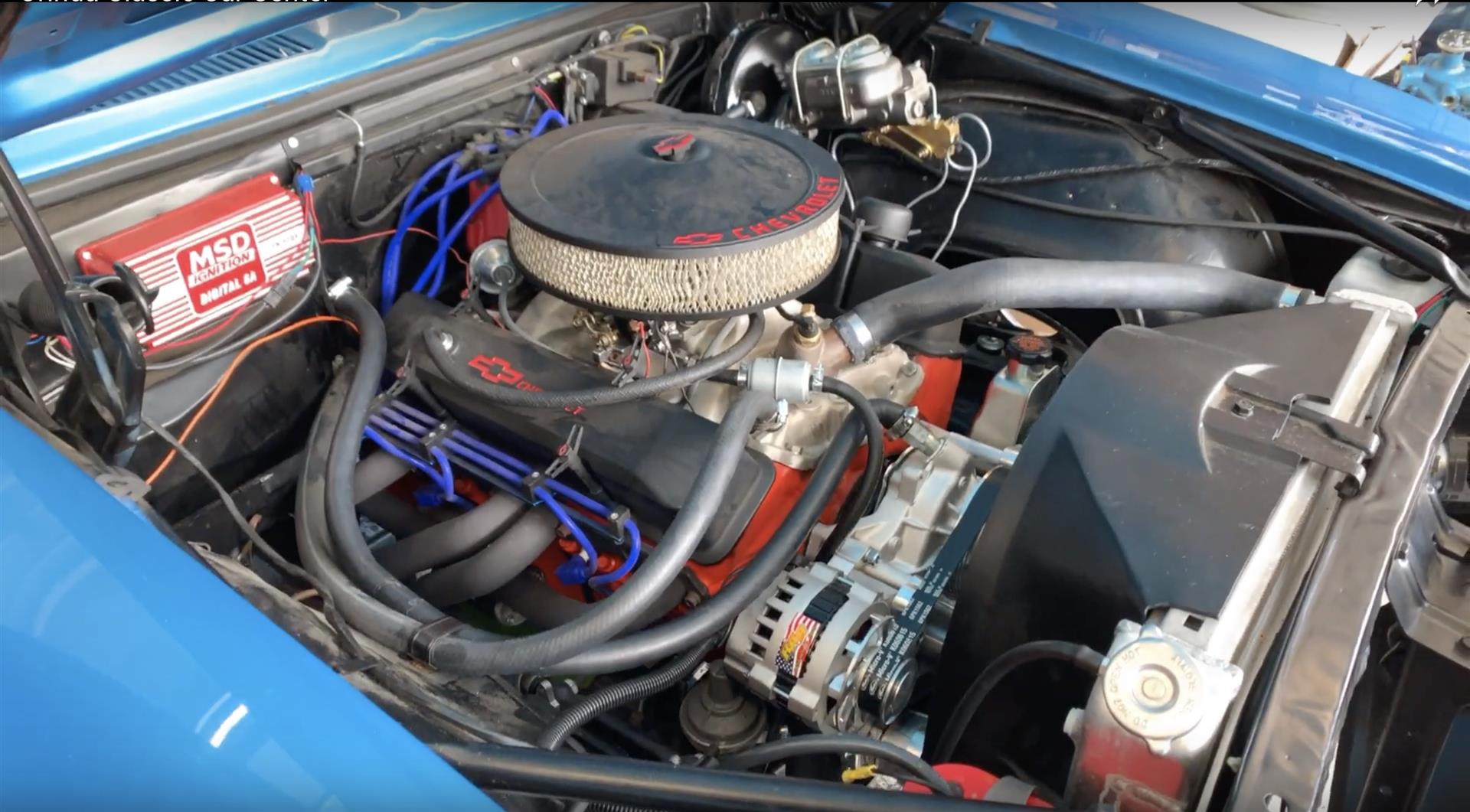

Installed serpentine belt drive system, alternator, water pump, crankshaft pulley, and power steering pump
Replaced sway bar with upgraded 1 1/8" unit

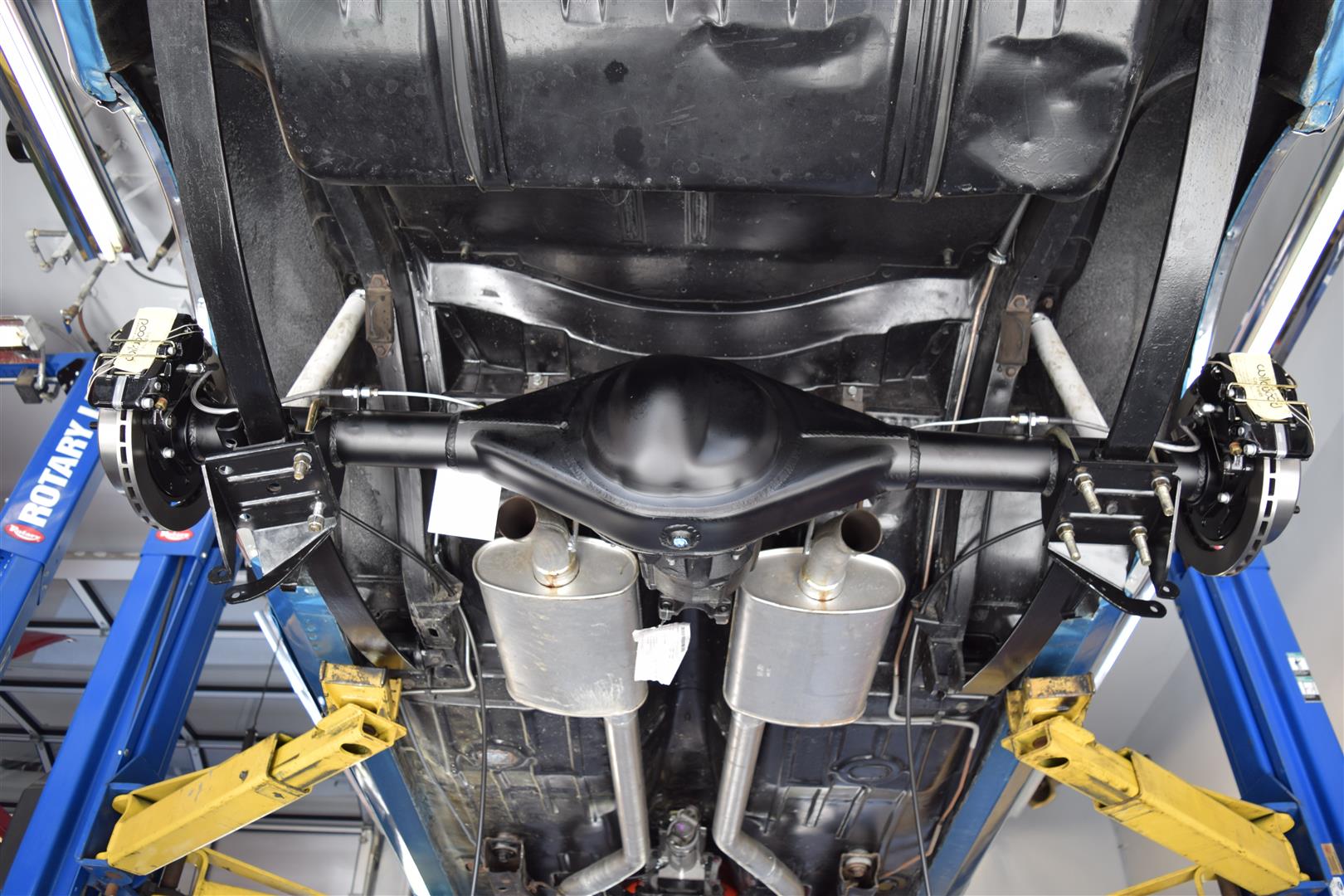

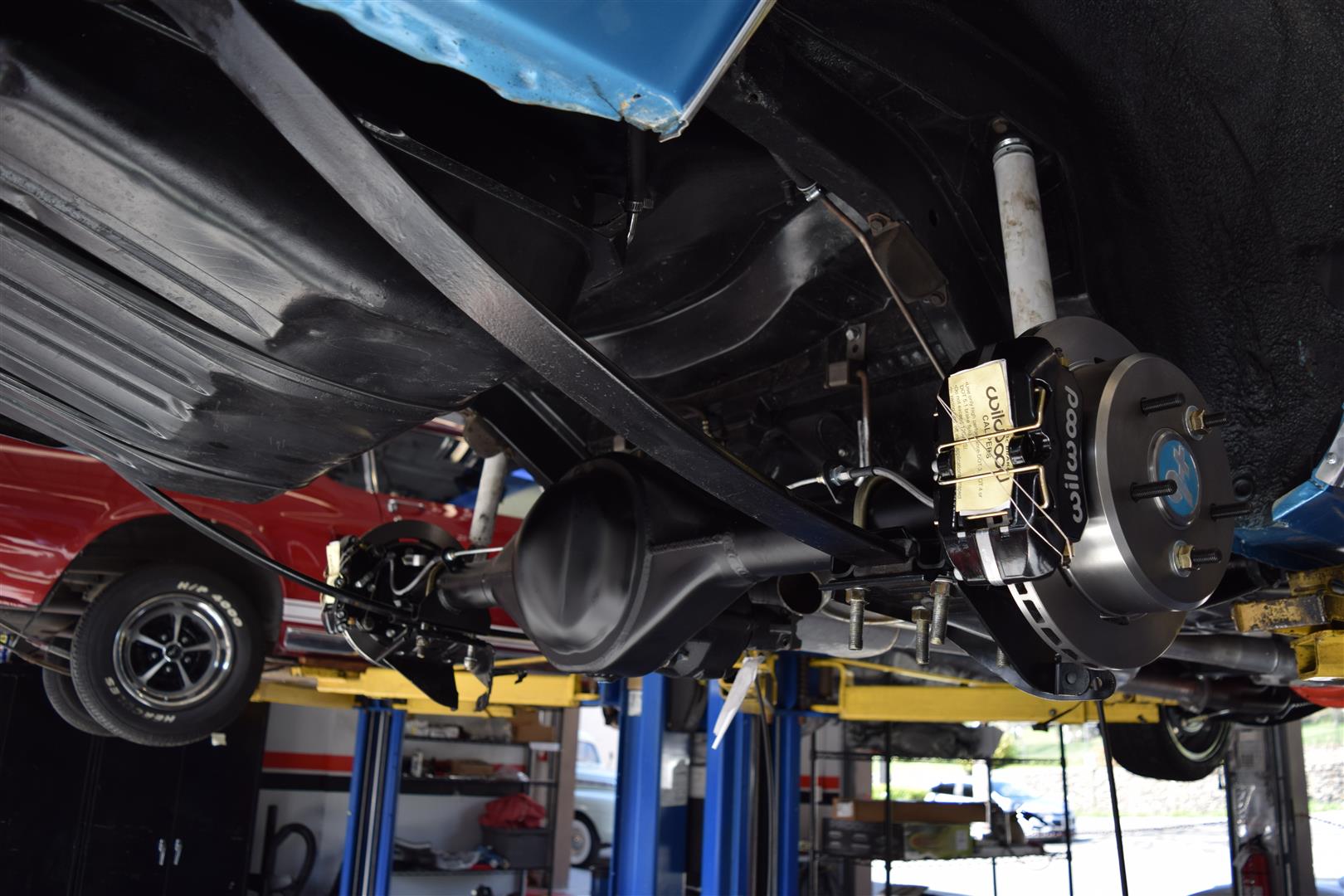

Installed custom ordered Ford 9" with a 3.70 and Wilwood disc brakes
Custom fit brake lines to caliper and installed custom parking brake cables

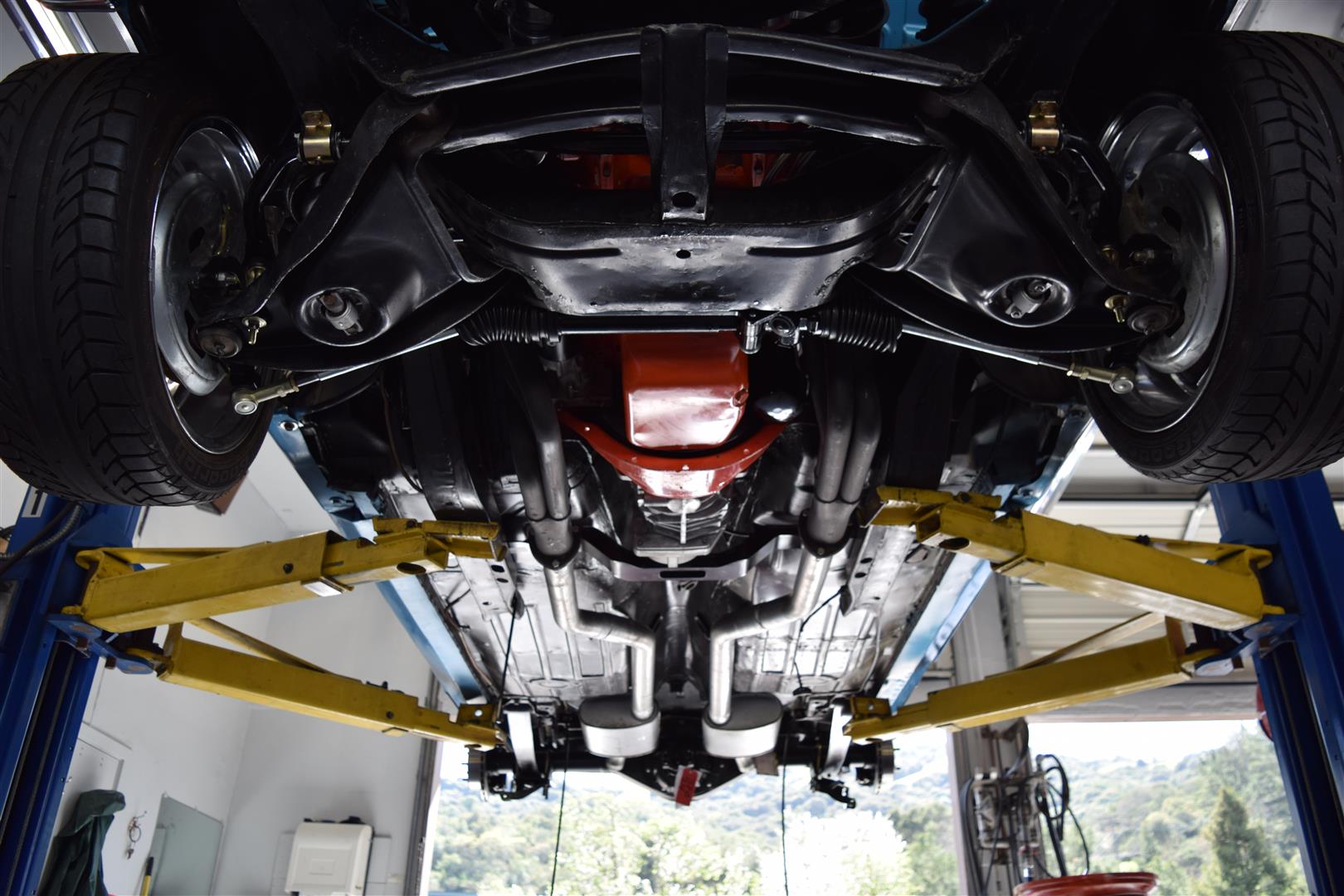

Modified center passenger exhaust pipe to clear parking cables
Replaced brake master cylinder, installed new proportioning valve, and bled system
Installed new lower mounting bracket for mono-leaf spring
Replaced rear shocks
Performed alignment
Went over electrical system, repaired, replaced, and fabricated necessary components for proper operation

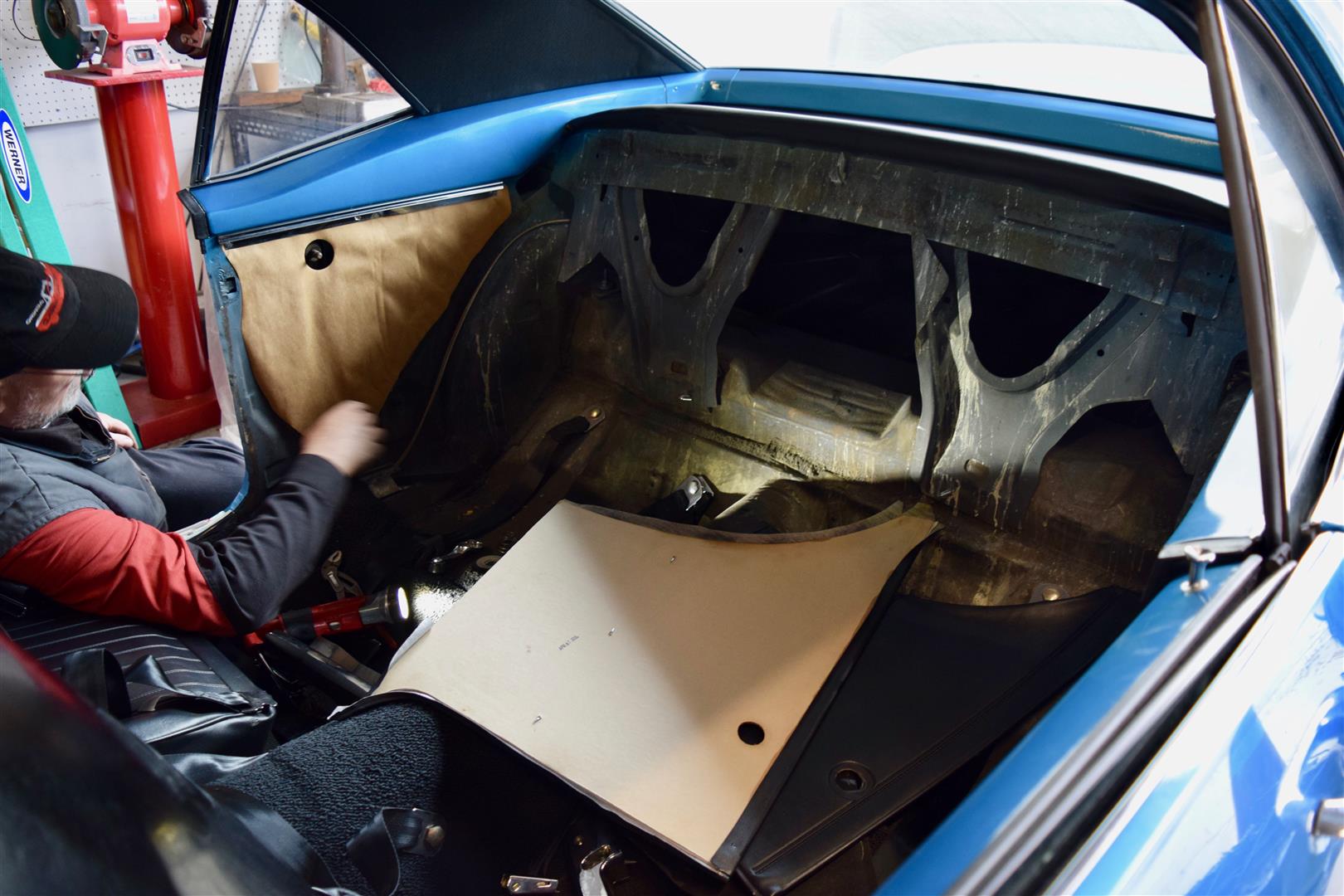

Fabricated reinforcement plates for interior windows (driver, passenger, and both rear quarter) due to fitment issues

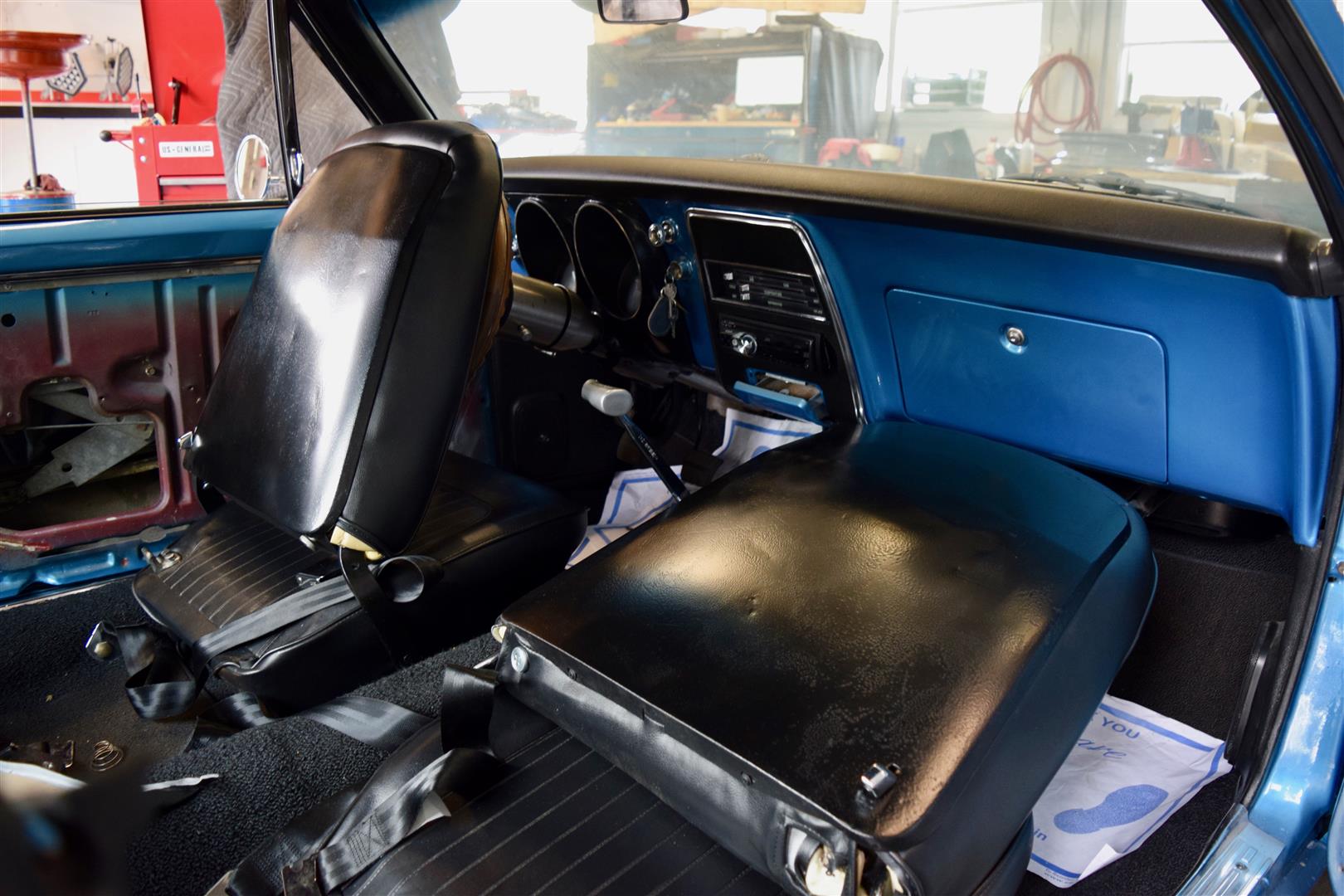

Replaced front seat belts
Replaced driver side mirror
Performed oil change service and lubricated chassis

Briefly about the project

This Camaro may have started life in 1967 as just another standard vehicle but after the work we have done it is a performance resto moded Camaro! Jay wanted a vehicle that could be a functional performer which meant updating various systems on the vehicle. We replaced the standard transmission with a 5 speed manual, replaced the old steering system with a power assisted rack and pinion one, replaced the rear end with a custom ordered Ford 9” accompanied with Wilwood disc brakes. We also ditched the old drive belt layout for a modern serpentine belt set up. Along with all the updating we also worked on the vehicle’s electrical system to ensure everything worked properly. As well as work on subtle details such as interior and exterior items.
